Loading Ramp Length Calculator

Last updated: 05 Jul 2025 | Author: Brij | Review By: Irshad

Share on :

Easily calculate the ideal ramp length using our Loading Ramp Length Calculator. Choose angle or slope ratio, input vertical height, and get accurate results instantly.

Vertical Height (Rise):

Ramp Slope Input Type:

Ramp Incline Angle:

Required Ramp Length

Ramp Length:

Common Slope Standards:
• ADA Compliance: ≤ 4.8° (1:12 slope)
• Wheelchair Ramps: 5°-7° (1:12 to 1:8)
• Vehicle Ramps: ≤ 15° (1:4 slope)

When designing or using a loading ramp, one of the most important factors to consider is the ramp length, which ensures safe and effective use. Whether you’re using it for wheelchairs, loading docks, vehicles, or heavy equipment, this calculator helps you accurately calculate the ramp length based on your needs.

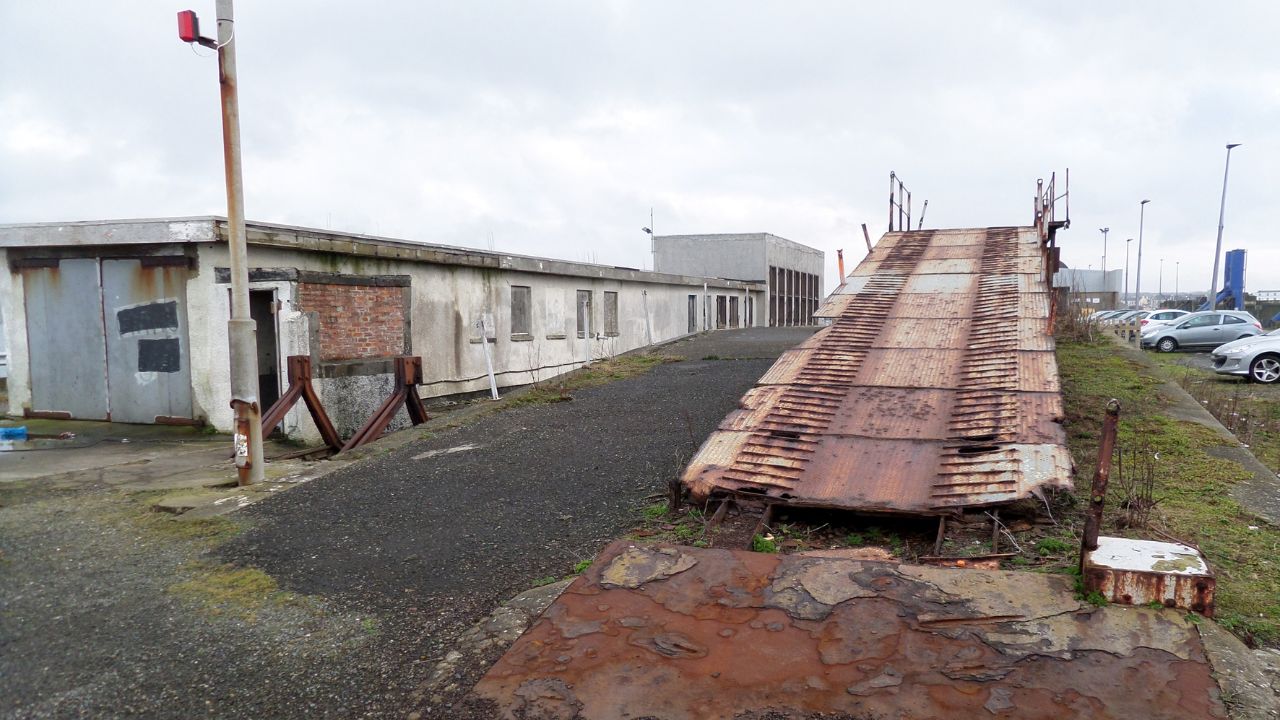

What is a Loading Ramp?

A loading ramp is a sloped surface that connects two levels – typically the ground and a higher platform – allowing people or vehicles to move between them. The ramp’s length depends on the vertical rise and the slope angle or slope ratio.

Ramp Length Calculation Using Angle

If you know the vertical rise (height from ground to upper level) and the incline angle (in degrees), use this formula:

Formula:

$\text{Ramp Length} = \frac{\text{Vertical Height}}{\sin(\theta)}$

Ramp Length Calculation Using Slope Ratio

If you have the slope ratio (e.g., 1:12), use this formula:

$\text{Ramp Length} = \sqrt{(\text{Run})^2 + (\text{Rise})^2}$

Where:

$\text{Run} = \text{Rise} \times \text{Slope Ratio}$

Example 1: Using Angle

Vertical Height = 12 inches = 1 foot
Angle = 5°

Step-by-step:

$\text{Ramp Length} = \frac{1}{\sin(5^\circ)} \approx 11.46 \text{ feet}$

Example 2: Using Slope Ratio

Vertical Height (Rise) = 12 inches
Slope Ratio = 1:12

$\text{Run} = 12 \times 12 = 144 \text{ inches}$

$\text{Ramp Length} = \sqrt{144^2 + 12^2} = \sqrt{20880} \approx 12.04 \text{ feet}$

Why Accurate Ramp Calculation Matters

Prevents injury or strain
Ensures ADA (Americans with Disabilities Act) compliance
Provides a smoother, safer transition for wheeled equipment
Reduces the risk of tipping or instability

FAQs

1. What is ramp length and why is it important?

Answer: Ramp length is the sloped distance from the base to the top of the ramp. It’s crucial because a ramp that is too steep can be unsafe for people, wheelchairs, or equipment. A properly calculated ramp length ensures safe and easy access.

2. What does a 1:12 slope ratio mean?

Answer: A 1:12 slope ratio means for every 1 inch of vertical rise, the ramp extends 12 inches (1 foot) horizontally. This is commonly used for wheelchair-accessible ramps and meets ADA guidelines.

3. What is the minimum ramp length for a 12-inch rise?

Answer: Using the ADA-recommended 1:12 slope ratio:

$\text{Ramp Length} = 12 \times 12 = 144 \text{ inches} = 12 \text{ feet}$

So, for a 12-inch rise, the minimum ramp length should be 12 feet.

4. Can I use the calculator for both residential and commercial ramps?

Answer: Yes! The Loading Ramp Length Calculator works for all types of ramps – residential, commercial, industrial, and even vehicle ramps – as long as you input accurate values for rise and slope.
