An Effective Span of Slab Calculator helps engineers, architects, students, and construction professionals determine the effective span used in the structural design of reinforced concrete (RCC) slabs. The effective span is an important design parameter because it affects bending moments, shear forces, reinforcement requirements, and overall slab performance.
This calculator uses the clear span, slab thickness, and support width to determine the effective span according to common RCC design principles.

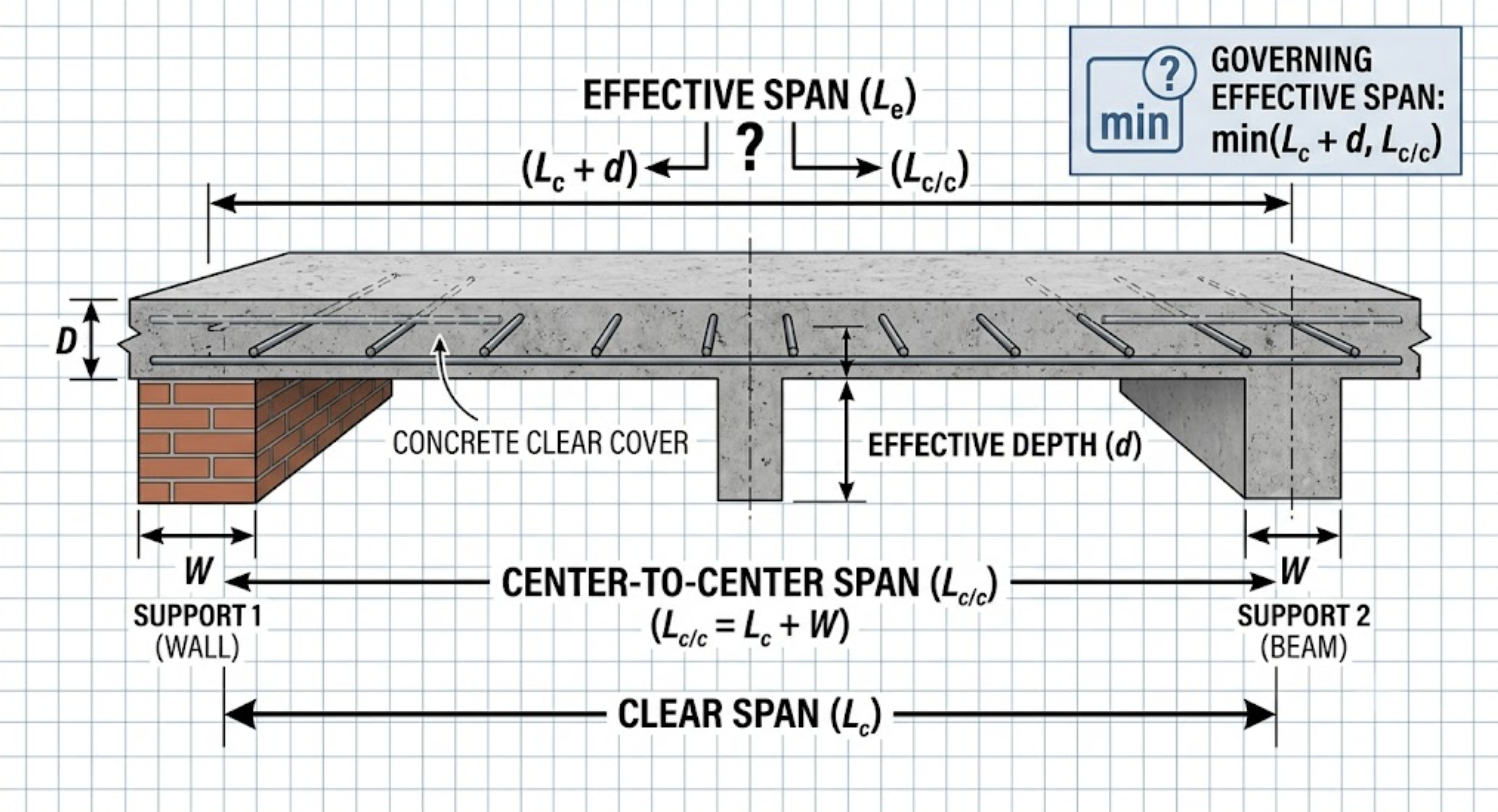

What Is Effective Span?
The effective span of a slab is the distance used for structural analysis and design. It is not always the same as the clear span because the slab transfers loads through supporting beams or walls.
For simply supported slabs, the effective span is generally taken as the lesser of:
- Clear Span + Effective Depth (or slab thickness in simplified calculations)
- Center-to-Center Distance Between Supports
Using the correct effective span ensures accurate calculation of bending moments and reinforcement requirements.
Formulas
Formula 1: Span Based on Clear Span
First, calculate the span based on clear span and slab thickness.
Formula:
S1=Clear Span+Slab Thickness
Where:
- (S_1) = Span based on clear span
- Clear Span = Distance between supports
- Slab Thickness = Thickness of slab
Formula 2: Center-to-Center Span
The center-to-center span is calculated by adding the support width to the clear span.
Formula:
S2=Clear Span+Support Width
Where:
- (S_2) = Center-to-Center Span
Formula 3: Effective Span
The effective span is the lesser of the two calculated spans.
Effective Span=min(S1,S2)
Formula 4: Governing Effective Span
The governing effective span is the final span selected for structural design.
Formula:
Governing Effective Span=Effective Span
Why Is Effective Span Important?
The effective span plays a major role in structural design because it affects:
- Bending moment calculations
- Shear force calculations
- Reinforcement design
- Deflection checks
- Load distribution
Using an incorrect span can lead to inaccurate design results and unsafe structures.
Example Calculation
Suppose a slab has the following dimensions:
- Clear Span = 5.0 m
- Slab Thickness = 0.15 m
- Support Width = 0.30 m
Step 1: Calculate Span Based on Clear Span
S1=5.0+0.15
S1=5.15 m
Step 2: Calculate Center-to-Center Span
S2=5.0+0.30
S2=5.30 m
Step 3: Determine Effective Span
Effective Span=min(5.15,5.30)
Effective Span=5.15 m
Step 4: Determine Governing Effective Span
Governing Effective Span=5.15 m
Example Results
Measurement | Value |
|---|
Clear Span | 5.00 m |
Slab Thickness | 0.15 m |
Support Width | 0.30 m |
Span Based on Clear Span | 5.15 m |
Center-to-Center Span | 5.30 m |
Effective Span | 5.15 m |
Governing Effective Span | 5.15 m |
Applications of Effective Span Calculation
Effective span calculations are commonly used in:
- RCC slab design
- Residential buildings
- Commercial structures
- Bridge deck slabs
- Structural engineering projects
- Construction planning
Conclusion
An Effective Span of Slab Calculator simplifies the process of determining the design span of a slab. By entering the clear span, slab thickness, and support width, engineers and builders can quickly find the effective span used for structural analysis and reinforcement design. This helps improve design accuracy and ensures compliance with common RCC design practices.
