Wall Molding Calculator: Simplify Your Wall Design Project

Last updated: 09 Oct 2026 | Author: Brij | Review By: Irshad

Share on :

Use the Wall Molding Calculator to estimate the number of decorative frames that fit on your wall and the total molding length needed. Enter your wall and frame dimensions, horizontal and vertical spacing, and waste percentage to calculate material requirements, including your selected waste allowance.

Wall Width:

Wall Height:

Frame Width:

Frame Height:

Horizontal Spacing:

Vertical Spacing:

Waste Factor (%):

Wall Molding Calculator: Simplify Your Wall Design Project

Results

Total Molding Length (with Waste):

Num of frames:

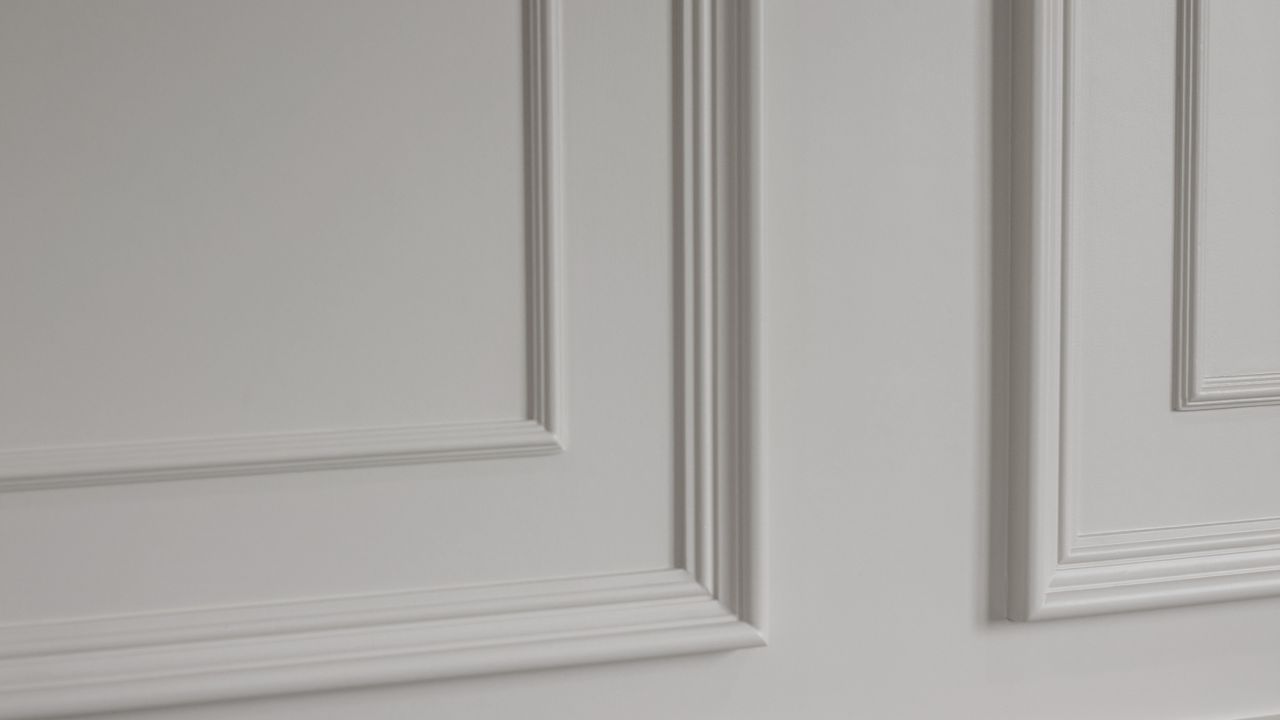

Installing wall molding with precise measurements can transform a plain wall into an elegant feature. The Wall Molding Calculator makes it easy to determine the required materials by calculating the number of frames, total molding length, and additional material needed for waste.

Formulas for Wall Molding Calculations

1. Calculate the Number of Frames

The total number of frames is determined by calculating how many frames fit horizontally and vertically on the wall, considering spacing between frames.

Horizontal Frames

$\text{numFramesHorizontal} = \left\lfloor \frac{\text{Wall Width} + \text{Horizontal Spacing}}{\text{Frame Width} + \text{Horizontal Spacing}} \right\rfloor$

Where:

Wall Width = Total width of the wall (in feet or meters)
Frame Width = Width of one frame (in feet or meters)
Horizontal Spacing = Space between frames horizontally (in feet or meters)

Vertical Frames

$\text{numFramesVertical} = \left\lfloor \frac{\text{Wall Height} + \text{Vertical Spacing}}{\text{Frame Height} + \text{Vertical Spacing}} \right\rfloor$

Where:

Wall Height = Total height of the wall (in feet or meters)
Frame Height = Height of one frame (in feet or meters)
Vertical Spacing = Space between frames vertically (in feet or meters)

Total Frames

$\text{Total Frames} = \text{numFramesHorizontal} \times \text{numFramesVertical}$

Example Calculation for Number of Frames

Input Values:

Wall Width = 10 ft
Wall Height = 10 ft
Frame Width = 1 ft
Frame Height = 2 ft
Horizontal Spacing = 3 ft
Vertical Spacing = 3 ft

Horizontal Frames:

$\text{numFramesHorizontal} = \left\lfloor \frac{10 + 3}{1 + 3} \right\rfloor = \left\lfloor \frac{13}{4} \right\rfloor = 3$

Vertical Frames:

$\text{numFramesVertical} = \left\lfloor \frac{10 + 3}{2 + 3} \right\rfloor = \left\lfloor \frac{13}{5} \right\rfloor = 2$

Total Frames:

$\text{Total Frames} = 3 \times 2 = 6$

2. Calculate Molding Length for One Frame

$\text{Molding per Frame} = 2 \times (\text{Frame Width} + \text{Frame Height})$

Where:

$\text{Frame Width}$ = Width of one frame (in feet or meters)
$\text{Frame Height}$ = Height of one frame (in feet or meters)

Example Calculation for Molding per Frame

Input Values:

Frame Width = 1 ft
Frame Height = 2 ft

Using the formula:

$\text{Molding per Frame} = 2 \times (1 + 2) = 2 \times 3 = 6 \, \text{ft}$

3. Calculate Total Molding Length

The total molding length for all frames is calculated as:

$\text{Total Molding Length} = \text{Molding per Frame} \times \text{Total Frames}$

Example Calculation for Total Molding Length

Input Values:

Molding per Frame = 6ft
Total Frames = 6

Using the formula:

$\text{Total Molding Length} = 6 \times 6 = 36 \, \text{ft}$

4. Add Waste Factor

The total molding length with waste is calculated as:

$\text{Total Molding with Waste} = \text{Total Molding Length} \times (1 + \text{Waste Factor})$

Where:

$\text{Waste Factor}$
Waste Factor = Percentage of waste expressed as a decimal (e.g., 5% = 0.05)

Example Calculation for Total Molding with Waste

Input Values:

Total Molding Length = 36 ft
Waste Factor = 5% = 0.05

Using the formula:

$\text{Total Molding with Waste} = 36 \times (1 + 0.05) = 36 \times 1.05 = 37.8 \, \text{ft}$

Key Benefits of the Wall Molding Calculator

Accurate Planning: Calculate the exact number of frames and total molding length needed for your project.
Waste Management: Factor in material waste to avoid shortages during installation.
Flexible Design: Works with various wall sizes, frame dimensions, and spacing preferences.
Time-Saving: Eliminates manual calculations and ensures precise measurements.

Frequently Asked Questions

1. What measurements do I need to use the calculator?

You need the wall width and height, frame width and height, horizontal and vertical spacing between frames, and a waste percentage. Select the correct unit for each measurement.

2. Does the total molding length include waste?

Yes. The Total Molding Length (with Waste) result includes the waste percentage you enter. This allowance provides extra material for cutting losses, offcuts, and mistakes.

3. Does spacing affect the number of frames?

Yes. Larger gaps can reduce the number of frames that fit across or down the wall. Smaller gaps may allow more frames, increasing the total molding required.

4. Can I calculate frames of different sizes on the same wall?

The calculator accepts one frame width and height at a time. For a mixed-size design, divide your planned layout into separate sections and calculate each section using its corresponding frame dimensions.

5. Does the calculator account for doors, windows, or wall fixtures?

There are no separate inputs for these obstructions. Measure the usable wall sections around them and calculate each section separately. Also allow space for baseboards, ceiling trim, and any desired border around the layout.

6. What waste percentage should I enter?

Choose an allowance based on your cutting plan, available molding lengths, and how much leftover material you can reuse. More cuts or limited opportunities to reuse offcuts may require a larger allowance. The calculator applies your chosen percentage rather than determining it automatically.

7. How do I convert the molding length into pieces to purchase?

Divide the total molding length, including waste, by the length of one stock piece and round up. Then check your cutting plan: the combined length may be sufficient even when individual offcuts are too short for the frame sides.

8. Does the calculator provide an installation layout?

The listed results give the number of frames and total molding length, not a detailed placement or cutting plan. Check the arrangement, edge margins, and frame measurements before purchasing or cutting material.
