Curved Roof Surface Area Calculator

Last updated: 15 Sep 2026 | Author: Brij | Review By: Irshad

Share on :

Calculate curved roof surface area from roof length, width, and rise to estimate materials for barrel, arched, and curved roofs.

Roof Length:

Length of the roof (along the ridge)

Roof Width:

Width of the roof (span)

Roof Rise / Curve Height:

Height of the curve at center

Curved Roof Surface Area Results

Curved Roof Surface Area:

sq ft

Total curved surface area of the roof

Arc Length (per width):

Curved distance across the width

Effective Radius:

Radius of curvature

Central Angle:

degrees

Angle of the arc

Flat Projected Area:

sq ft

Length × Width (for reference)

A Curved Roof Surface Area Calculator helps you estimate the actual surface area of an arched or curved roof. It uses the roof length, roof width, and roof rise to calculate the curved arc length and total roof surface area.

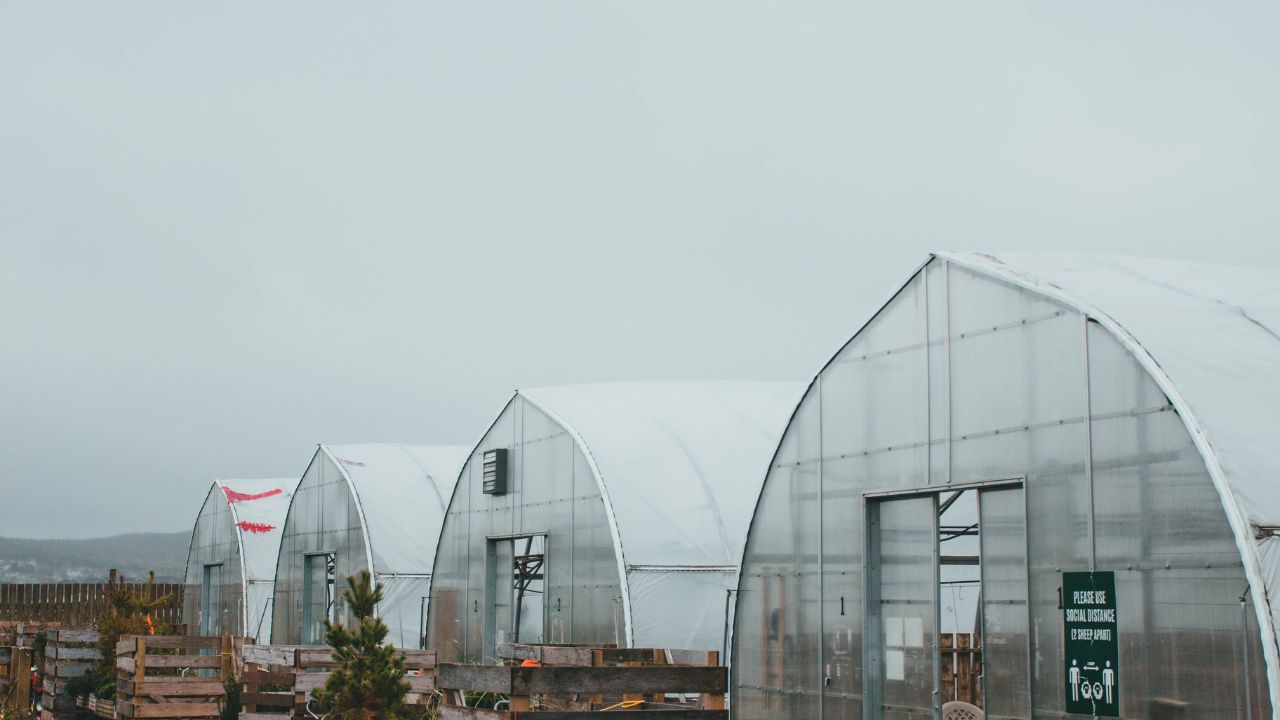

This calculation is useful for estimating roofing materials, insulation, paint coverage, waterproofing, and project costs for barrel roofs, arched roofs, tunnel roofs, and curved greenhouse structures.

How to Use the Curved Roof Surface Area Calculator

Enter the following measurements:

Roof length
Roof width
Roof rise

The calculator returns the curved roof surface area.

Use the same measurement unit for every value, such as feet, metres, inches, or centimetres.

Understanding Roof Length, Width, and Rise

Roof length is the distance along the length of the building or roof.
Roof width is the horizontal distance between the two roof edges.
Roof rise is the vertical height from the line between the roof edges to the highest point of the curve.

The calculation treats the roof curve as a circular arc.

Calculate the Radius of the Roof Curve

First, calculate the radius of the circle that forms the curved roof shape.

$\text{Roof Radius} = \frac{\text{Roof Width}^{2}}{8 \times \text{Roof Rise}} + \frac{\text{Roof Rise}}{2}$

Calculate the Central Angle

Next, calculate the central angle of the circular roof curve in radians.

$\text{Central Angle} = 2 \times \sin^{-1}\left(\frac{\text{Roof Width}}{2 \times \text{Roof Radius}}\right)$

Calculate Curved Arc Length

Multiply the roof radius by the central angle to calculate the curved distance from one roof edge to the other.

$\text{Curved Arc Length} = \text{Roof Radius} \times \text{Central Angle}$

Calculate Curved Roof Surface Area

Multiply the curved arc length by the roof length.

$\text{Curved Roof Surface Area} = \text{Curved Arc Length} \times \text{Roof Length}$

The result is expressed in square units, such as square feet or square metres.

Example Calculation

Suppose a curved roof has the following measurements:

Roof length: 20 feet
Roof width: 12 feet
Roof rise: 3 feet

Step 1: Calculate Roof Radius

$\text{Roof Radius} = \frac{12^{2}}{8 \times 3} + \frac{3}{2}$

$\text{Roof Radius} = 7.5\text{ ft}$

Step 2: Calculate the Central Angle

$\text{Central Angle} = 2 \times \sin^{-1}\left(\frac{12}{2 \times 7.5}\right)$

$\text{Central Angle} = 1.855\text{ radians}$

Step 3: Calculate Curved Arc Length

$\text{Curved Arc Length} = 7.5 \times 1.855 = 13.91\text{ ft}$

Step 4: Calculate Curved Roof Surface Area

$\text{Curved Roof Surface Area} = 13.91\text{ ft} \times 20\text{ ft} = 278.2\text{ ft}^{2}$

The estimated curved roof surface area is approximately 278.2 square feet.

Why Use a Curved Roof Surface Area Calculator?

A curved roof has more surface area than a flat roof with the same length and width. Calculating the actual curved surface helps you estimate materials more accurately.

Benefits include:

Estimating roofing material quantities
Planning insulation and waterproofing
Calculating paint or coating coverage
Reducing material shortages and waste
Improving project budgets and supplier estimates

Important Planning Notes

This calculator is designed for roofs shaped as circular arcs.
Measure the roof width horizontally from edge to edge.
Measure the rise vertically from the roof-edge line to the highest point of the curve.
Add extra material for overlaps, flashings, cuts, seams, waste, and repairs.
Complex roof shapes may need detailed drawings or professional measurement.

Frequently Asked Questions

What is curved roof surface area?

Curved roof surface area is the total exterior area of an arched or curved roof. It measures the actual curved roofing surface rather than the flat area beneath it.

Why is roof rise important?

Roof rise determines the curvature of the roof. A higher rise generally creates a longer roof arc and a larger surface area.

Can I use this calculator for barrel roofs?

Yes. The calculator is suitable for barrel roofs, arched roofs, tunnel roofs, curved greenhouses, and similar structures with a circular roof curve.

What units should I use?

You can use feet, metres, inches, or centimetres. Enter the roof length, width, and rise using the same unit.

Does the calculator include material waste?

No. The result estimates the actual curved surface area. Add extra material for overlaps, cutting, seams, flashings, and installation waste.

Is the result exact?

The result is accurate when the roof follows a circular arc. Complex, irregular, elliptical, or multi-curve roofs may require detailed measurements or professional modelling.

Does this calculator include roof overhangs?

Include the overhang in the roof width or roof length if you want the calculated area to cover the full roof surface, including the overhang.
